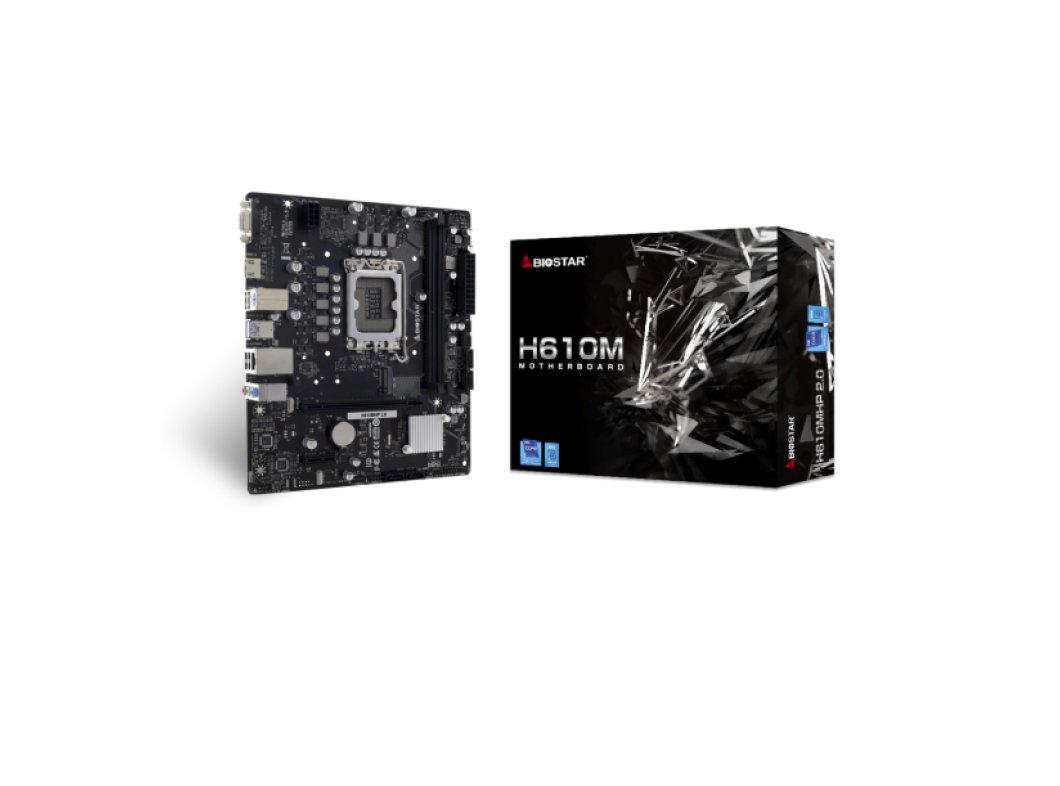

Yongaseti Intel H610 CPU SUPPORT Support for 12th/13th/14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package* Please refer to www.biostar.com.tw for CPU support list. MEMORY Supports Dual Channel DDR4 3200/ 2933/ 2666/ 2400/ 2133/ 18662 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB MemoryEach DIMM supports non-ECC 4/8/16/32GB DDR4 moduleSupport Intel Extreme Memory Profile (XMP) memory modules* Please refer to www.biostar.com.tw for Memory support list. INTEGRATED VIDEO By CPU modelSupports DX12Supports HDCP STORAGE Total supports 1 x M.2 socket and 4x SATA III (6Gb/s) portsIntel H610 Chipset1 x M.2 (M Key) Socket (M2M_SB):Supports M.2 Type 2242 /2260 /2280 SSD moduleSupports PCIe 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD4 x SATA III Connector (6Gb/s)* Specifications vary by CPU types LAN Realtek RTL8111H10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability AUDIO CODEC ALC8977.1 Channels, High Definition Audio USB 4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers)8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers) EXPANSION SLOT Intel 12th/13th/14th Processors1 x PCIe 4.0 x16 SlotIntel H610 Chipset1 x PCIe 3.0 x1 Slot* Specifications vary by CPU types REAR I/O 1 x PS/2 Keyboard/ Mouse Port1 x HDMI1 x VGA Port2 x USB 3.2 (Gen1) ports4 x USB 2.0 ports1 x LAN port3 x Audio Jack INTERNAL I/O 4 x SATA III Connector (6Gb/s)2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)1 x 8-Pin Power Connector1 x 24-Pin Power Connector1 x CPU Fan Connector1 x System Fan Connector1 x Front Panel Header1 x Front Audio Header1 x Internal Stereo Speaker Header1 x Clear CMOS Header H/W MONITORING CPU / System Temperature MonitoringCPU / System Fan MonitoringSmart / Manual CPU Fan ControlCPU/DDR Voltage Monitoring DIMENSION Micro ATX Form Factor Dimension: 19.8cm x 22.8cm ( W x L ) OS SUPPORT Supports Windows 10 (64bit) / 11(64bit)※Biostar reserves the right to add or remove support for any OS with or without notice. BUNDLE SOFTWARE BullGuard ACCESSORIES 2 x SATA Cable1 x I/O Shield1 x DVD Driver1 x Quick Guide1 x M.2 Anchor
