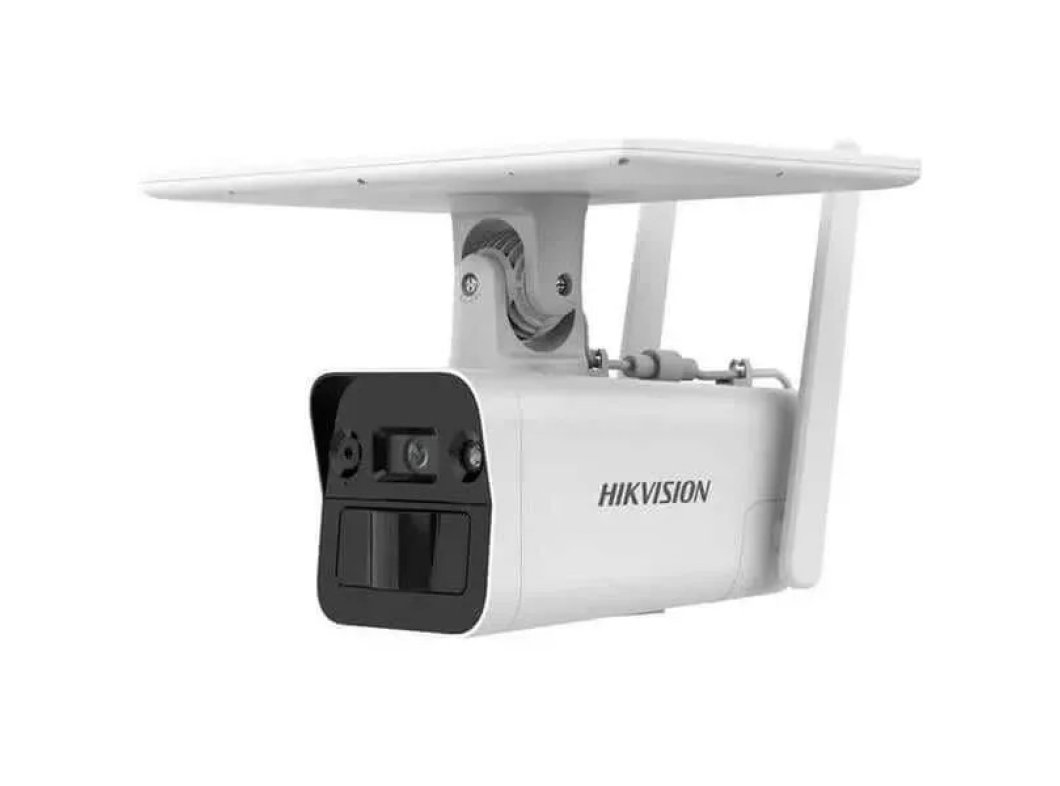

ISION (DS-2XS2T41G1-ID/4G) 4MP IR 4G SOLAR GÜNEŞ ENERJİ DESTEKLİ IP BULLET KAMERA 4MP Solar-powered Security Camera Setup High quality imaging with 4 MP resolution Standalone with solar panel and built-in battery Support human and vehicle detection Provide real-time security via built-in two-way audio Water and dust resistant (IP67) Support 4G (LTE-TDD/LTE-FDD/TD-SCDMA) communication Camera Image Sensor1/3" Progressive Scan CMOS Max. Resolution2560 × 1440 Min. IlluminationB/W: 0.01 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR Shutter Time1/3 s to 1/100,000 s Day & NightIR cut filter Angle AdjustmentSolar panel: tilt: -45° to 45°, rotate:-30° to 30° Lens Lens TypeFixed focal lens, 4 and 6 mm optional Iris TypeFixed Aperture4mm: F1.28, 6mm: F1.6 Depth of Field 4 mm: 2.7 m to ∞ 6 mm: 5.9 m to ∞ Focal Length & FOV 4 mm, Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93° 6 mm, Horizontal FOV: 49°, Vertical FOV: 26°, Diagonal FOV: 57° Lens MountM12 DORI DORI 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm, D: 128 m, O: 50 m, R: 25 m, I: 12 m Illuminator Supplement Light TypeIR Supplement Light RangePerformance mode: up to 30 m, proactive mode: up to 10 m IR Wavelength850 nm Smart Supplement LightYes Video Main Stream 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360) Video Compression Main stream: H.265/ H.264, Sub-stream: H.265/H.264/MJPEG, H.264+ and H.265+: main stream supports under performance mode Video Bit Rate32 Kbps to 8 Mbps H.264 TypeBaseline Profile,Main Profile,High Profile H.265 TypeMain Profile Bit Rate ControlCBR,VBR Region of Interest (ROI)1 fixed region for main stream Scalable Video Coding (SVC)H.264 and H.265 encoding Audio Audio Sampling Rate8 kHz/16 kHz Environment Noise FilteringYes Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Network SecurityPassword protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface Simultaneous Live ViewUp to 6 channels APIISAPI,SDK ProtocolsTCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP User/Host Up to 32 users 3 user levels: administrator, operator, and user Network StorageAuto Network Replenishment (ANR) ClientiVMS-4200,Hik-Connect,Hik-Central Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+ Mobile Communication SIM Card TypeMicro SIM Uplink and Downlink Data RateCat 4, uplink: 50 Mbps, downlink: 150 Mbps Frequency EU: LTE-TDD: B38/B40/B41 LTE-FDD: B1/B3/B5/B7/B8/B20/B28 WCDMA: B1/B5/B8 GSM: B3/B5/B8 LA: LTE-TDD: B38/B40 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66 WCDMA:B1/B2/B3/B4/B5/B8 GSM: B2/B3/B5/B8 StandardLTE-TDD,LTE-FDD,WCDMA,GSM Image SNR≥ 52 dB Wide Dynamic Range (WDR)Digital WDR Day/Night SwitchDay,Night,Auto,Schedule Image EnhancementBLC,HLC,3D DNR Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser Transducer Transducer TypePIR + Radar Detection Angle4 mm : Horizontal: 80°, vertical: 42°,6 mm:Horizontal: 50°, vertical: 22° Detection RangeUp to 12 m Interface Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in eMMC storage, up to 8 GB, Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 5 GB is available for recording. Built-in MicrophoneYes Built-in SpeakerYes Reset KeyYes Event Basic Event Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error Linkage Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture,audible warning General Power Power Consumption and Current: Typical power scenarios: 1.85 W (4G working) Standby scenarios: 80 mW Max. power consumption: 7 W Power Supply: 12 VDC *For debugging only 6.5 W (deviation: ± 1 W) Solar panels Power Interface: Power supply interface: Ø5.5 mm coaxial power plug Extened solar panel: Ø5.5 mm coaxial power plug MaterialPlastic Storage Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing) Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General FunctionHeartbeat,mirror,flash log Startup and Operating Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing) Dimension213.7 mm × 292.4 mm × 188.7 mm (8.4" × 11.5" × 7.3") Package Dimension345 mm × 240 mm × 292 mm (13.6" × 9.4" × 11.5") Weight Approx. 1.42 kg (3.1 lb.) With Package Weight Approx. 2.07 kg (4.6 lb.) Battery Battery TypeTernary Lithium Capacity51.46 Wh Max. Charging Voltage12.6 V Operating Temperature Charging: 0 °C to 45 °C (32 °F to 113 °F) Discharging: -20 °C to 50 °C (-4 °F to 122 °F) Battery Voltage 8.1 V to 12.6 V Battery LifeMore than 800 cycles Cycle Lifetime Proactive mode: 1.5 days, Standby mode: 11 days Battery WeightApprox. 185 g (0.4 lb.) Approval EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, *CE and RCM certifications are only for the device sold in the European region. RF CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G) *CE certification is only for the device sold in the European region. Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1, *CE and LOA certifications are only for the device sold in the European region. Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006, *CE certification is only for the device sold in the European region. ProtectionIP67: IEC 60529-2013 Ürün özellikleri Bağlantı Tipi Kablolu Kamera Tipi Gece Görüşlü (IR) Kameralar Kullanım Alanı Dış Mekan Çözünürlük 4 MP
